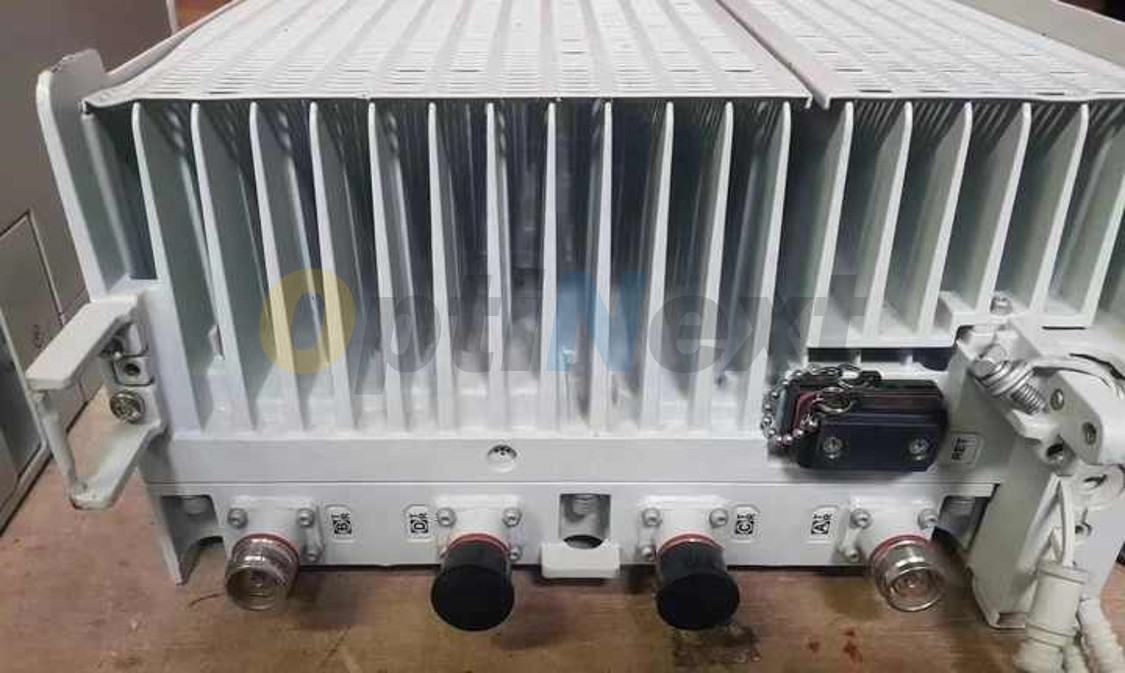

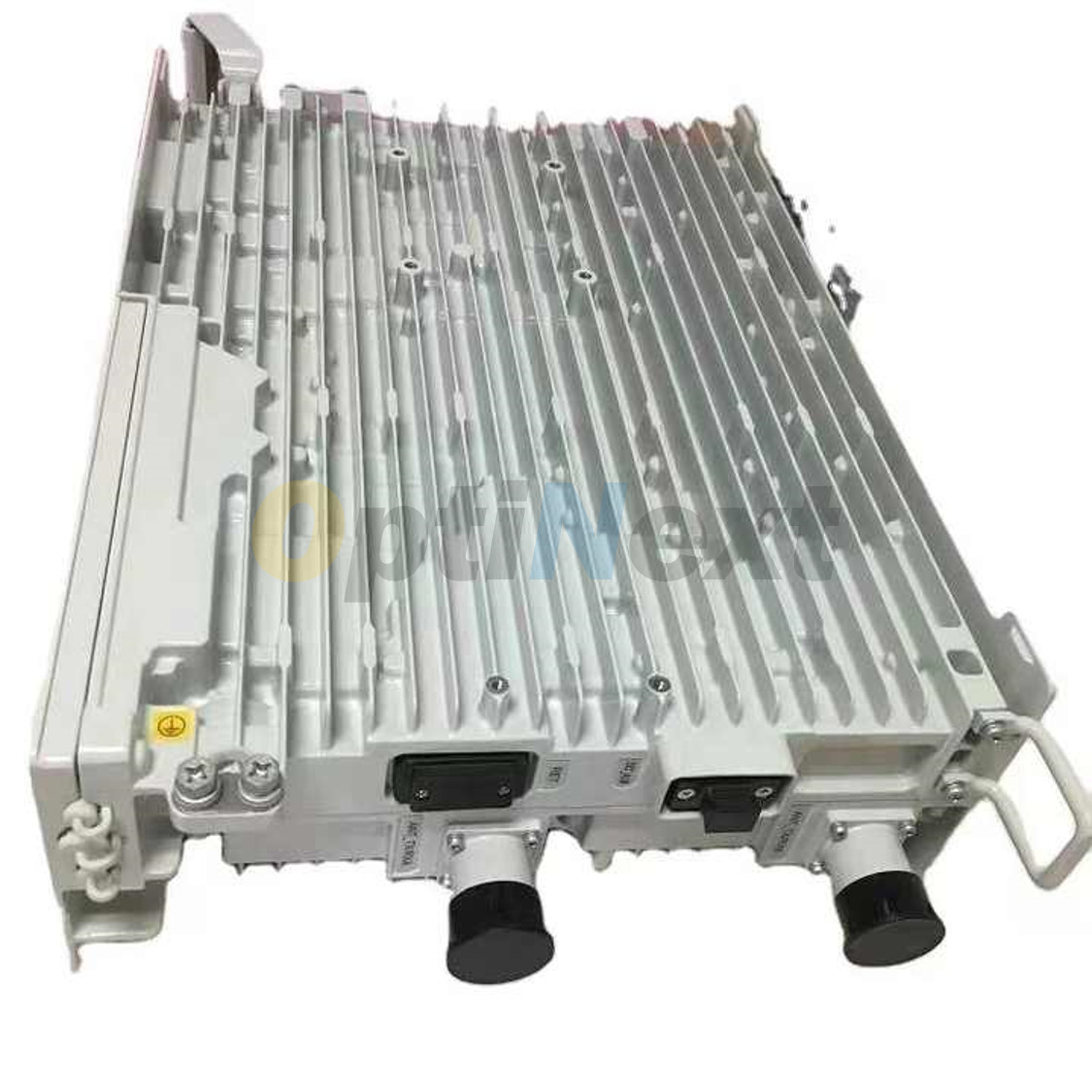

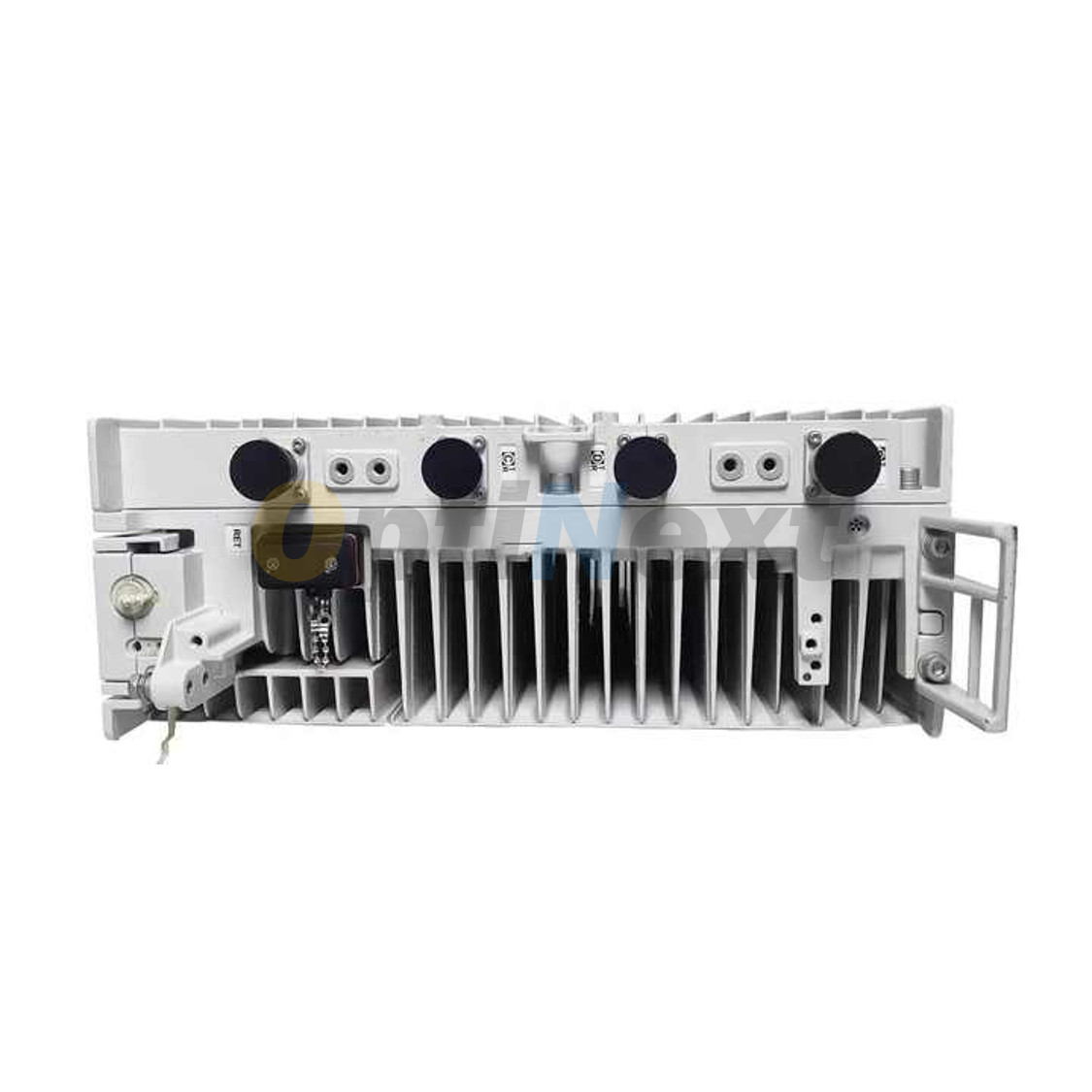

RRU3276
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | RRU3276 |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3.1 RRU3276 (2300 MHz) RF Specifications
The RF specifications include the supported RATs, frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
Supported Frequency Bands and RATs
Table 3-1 RATs and frequency bands supported by an RRU3276
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 2300 | Band 40 | 2300 to 2400 | LTE TDD | 100 | 80 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
4 RRU3276 (2600 MHz) Technical Specifications
The technical specifications of an RRU3276 (2600 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
4.1 RRU3276 (2600 MHz) RF Specifications
The RF specifications include the supported RATs, frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
Supported Frequency Bands and RATs
Table 4-1 RATs and frequency bands supported by an RRU3276
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 2600 | Band 38 | 2575 to 2615 | LTE TDD | 40 | 40 |
| 2600 | Band 41 | 2496 to 2690 | LTE TDD | 150 | 80 |
| 2600 | Band 41 | 2520 to 2620 | LTE TDD | 100 | 80 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
