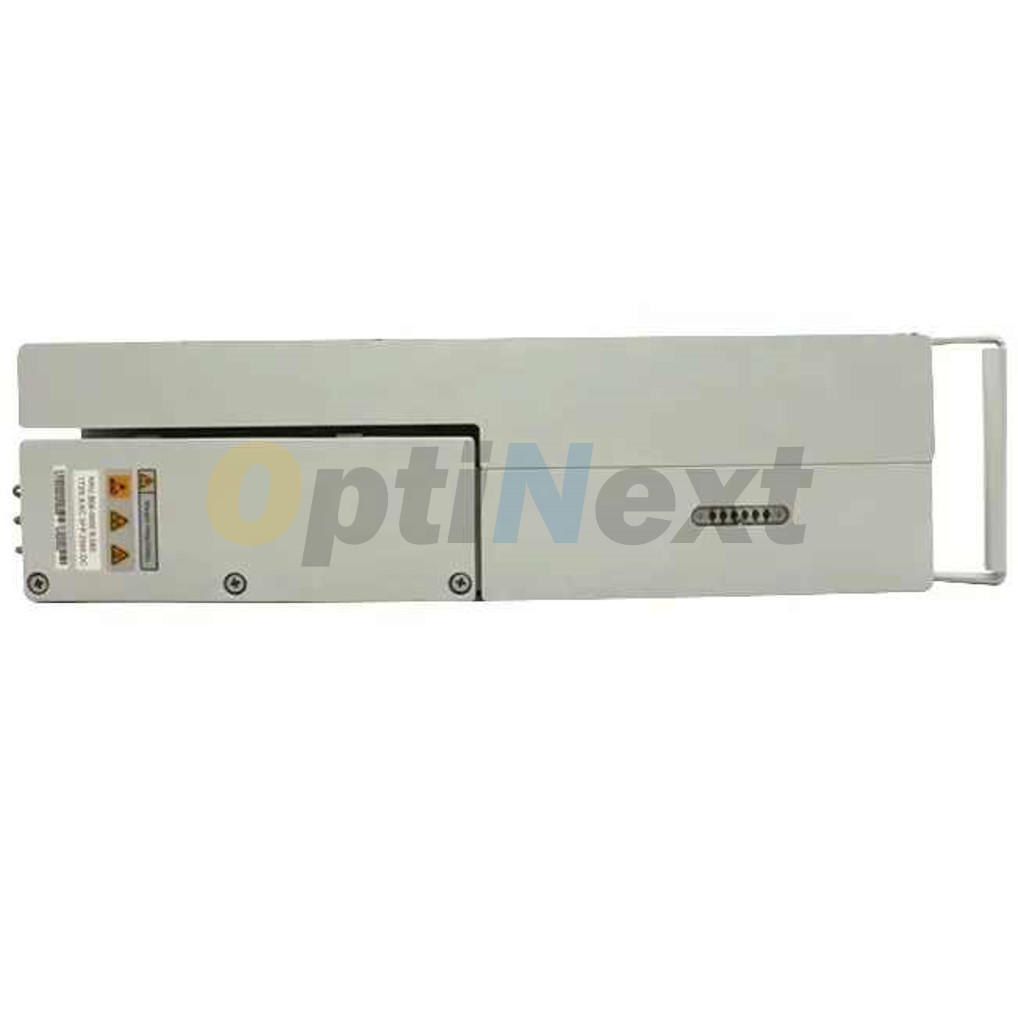

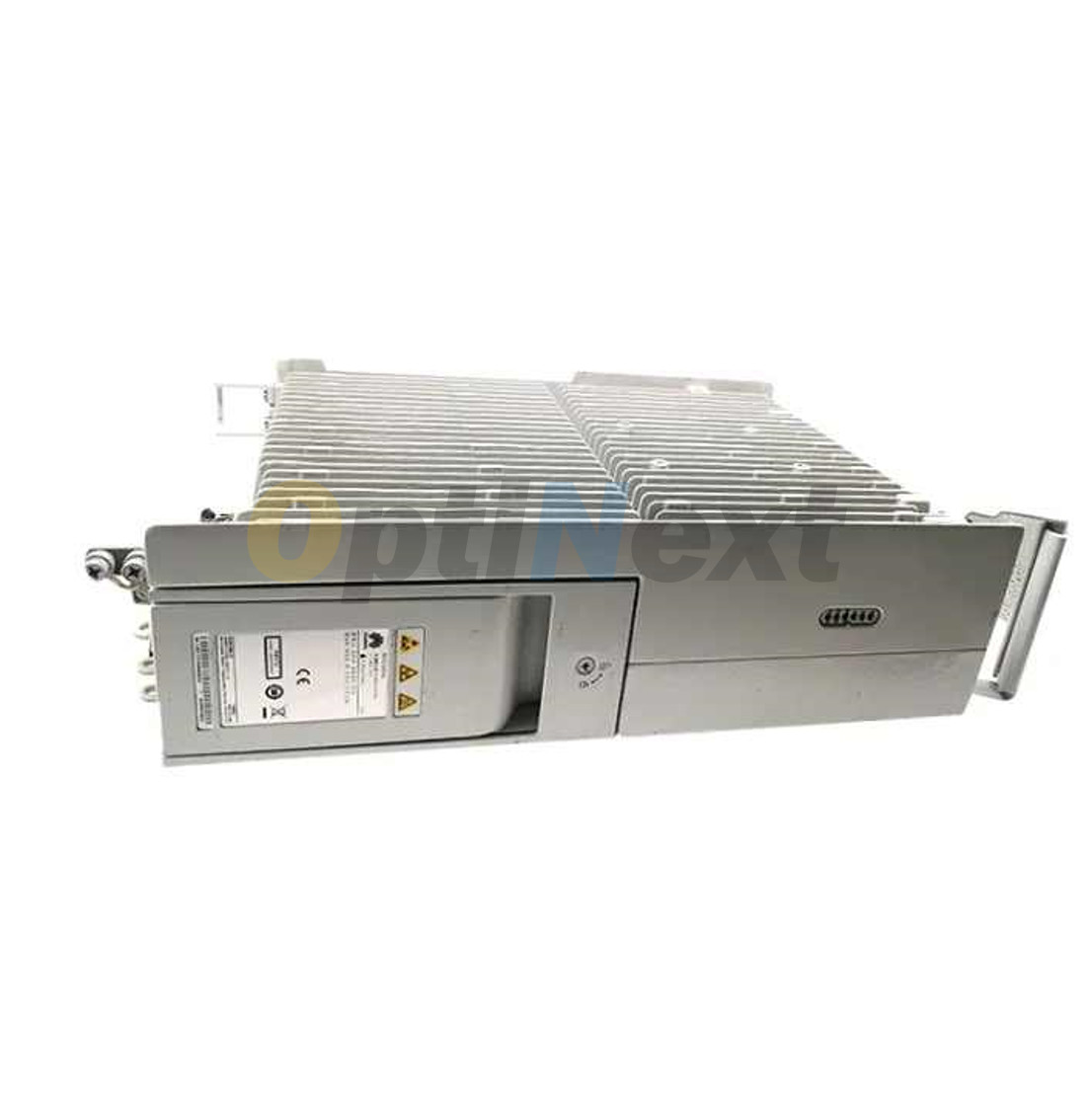

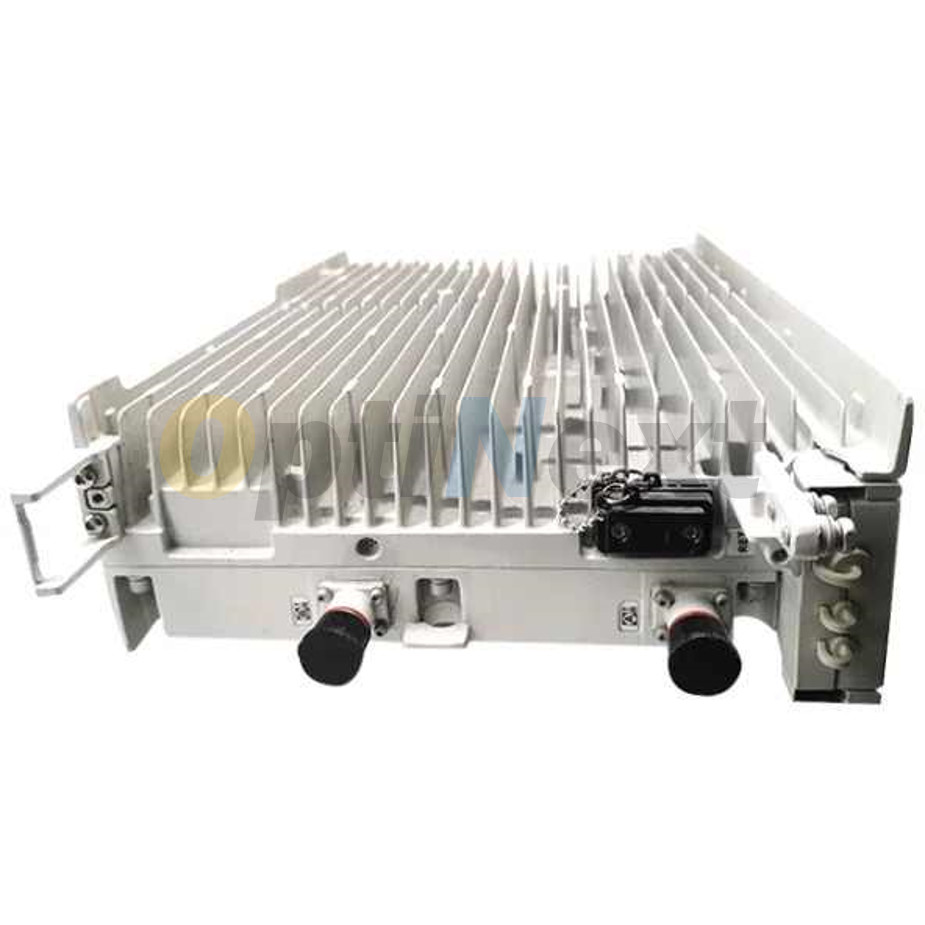

RRU3959
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | RRU3959 |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3 RRU3959 (900 MHz) Technical Specifications
The technical specifications of an RRU3959 (900 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
3.1 RRU3959 (900 MHz) RF Specifications
The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
Supported Frequency Bands and RATs
Table 3-1 Frequency bands and RATs supported by an RRU3959 (900 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|---|
| 900 EGSM | Band 8/n8 | 880 to 915 | 925 to 960 | GSM, UMTS, LTE FDD, GU, GL, UL, GUL, LTE NB-IoT, GM, UM, LM, GUM, GLM, ULM, GULM, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), MN (FDD), GMN (FDD), UMN (FDD), GUMN (FDD) | 35 |
| 900 PGSM | Band 8/n8 | 890 to 915 | 935 to 960 | GSM, UMTS, LTE FDD, GU, GL, UL, GUL, LTE NB-IoT, GM, UM, LM, GUM, GLM, ULM, GULM, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), MN (FDD), GMN (FDD), UMN (FDD), GUMN (FDD) | 25 |
4 RRU3959 (1800 MHz) Technical Specifications
The technical specifications of an RRU3959 (1800 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
4.1 RRU3959 (1800 MHz) RF Specifications
The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
- In the following, G is short for GSM, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
- In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.
Supported Frequency Bands and RATs
Table 4-1 Frequency bands and RATs supported by an RRU3959 (1800 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|---|
| 1800 | Band 3/n3 | 1710 to 1785 | 1805 to 1880 | GSM, LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD) | 45 |
5 RRU3959 (2100 MHz) Technical Specifications
The technical specifications of an RRU3959 (2100 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
5.1 RRU3959 (2100 MHz) RF Specifications
The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
- In the following, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
- In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.
Supported Frequency Bands and RATs
Table 5-1 Frequency bands and RATs supported by an RRU3959 (2100 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|---|
| 2100 | Band 1/n1 | 1920 to 1980 | 2110 to 2170 | UMTS, LTE FDD, UL, ULM, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD) | 60 |
