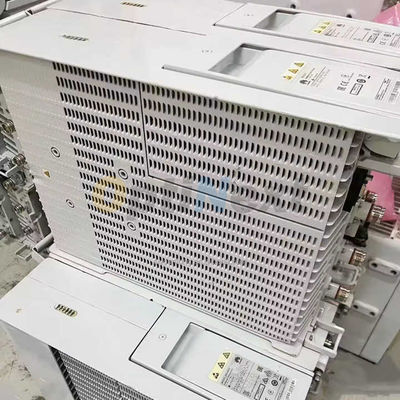

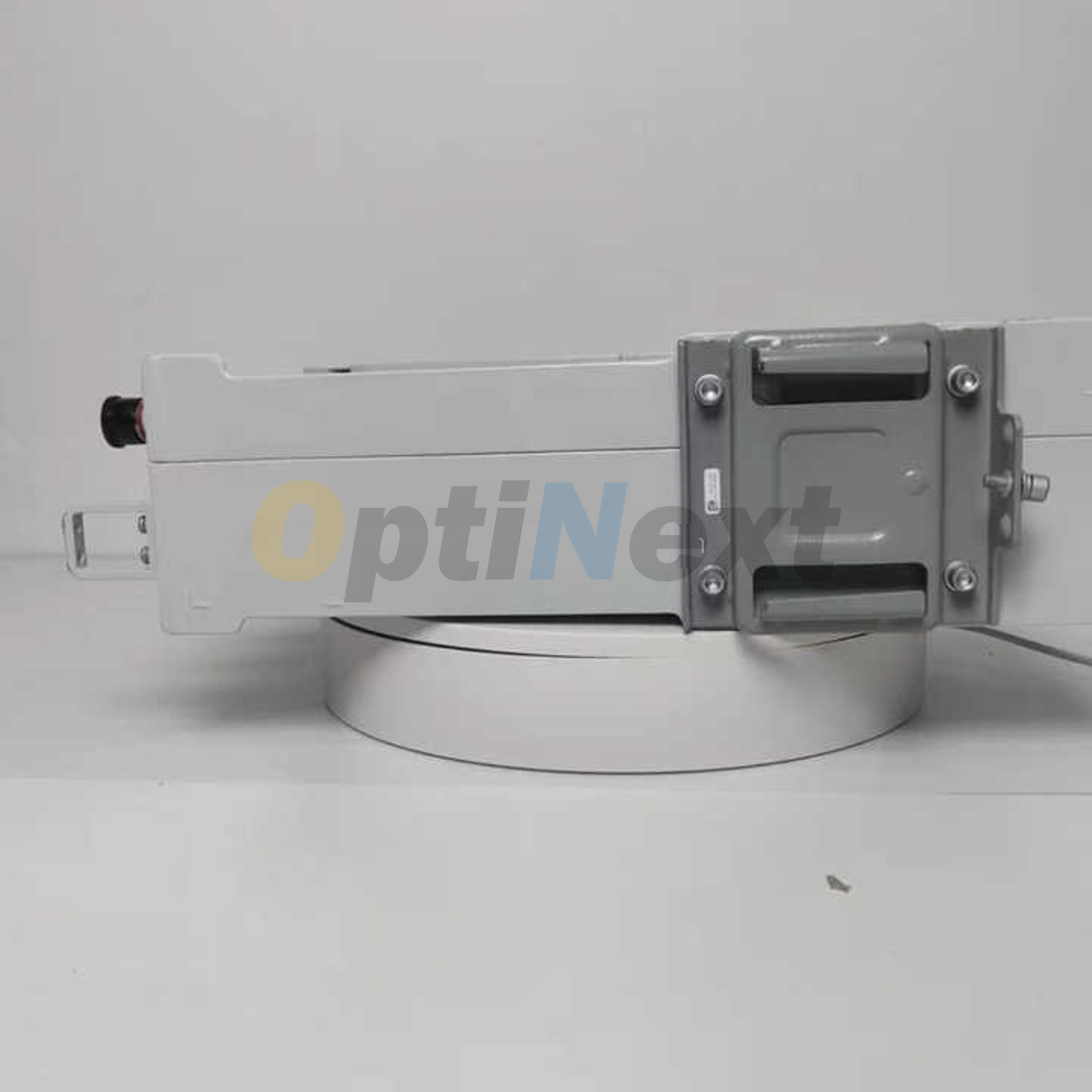

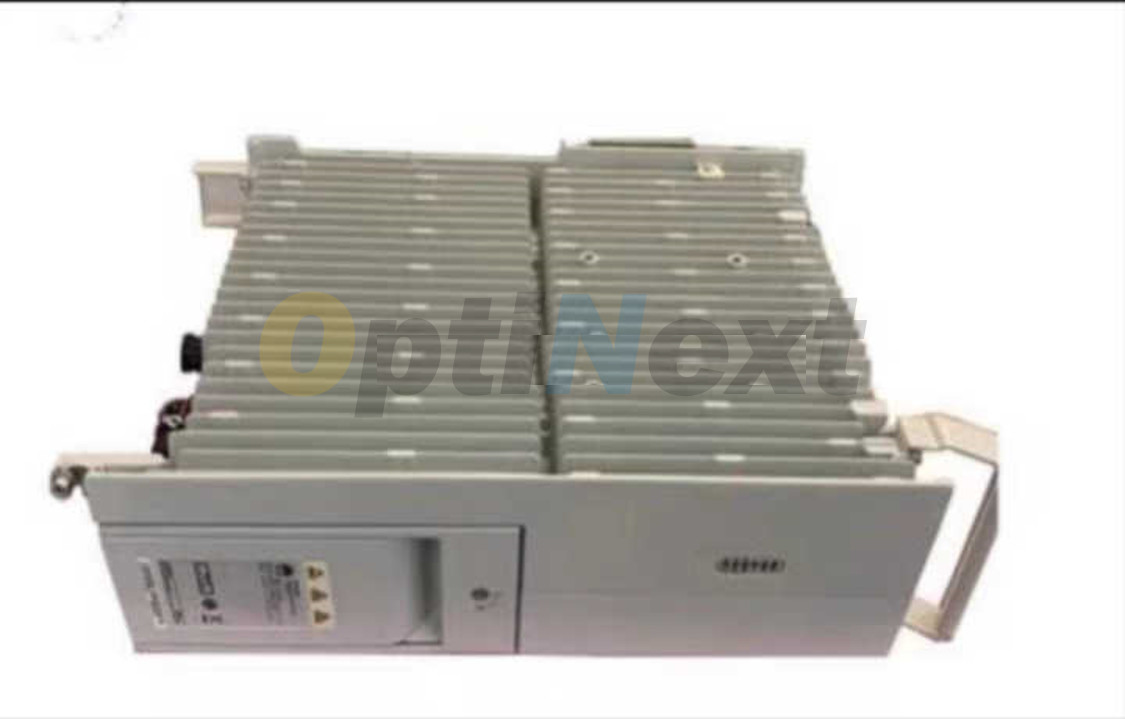

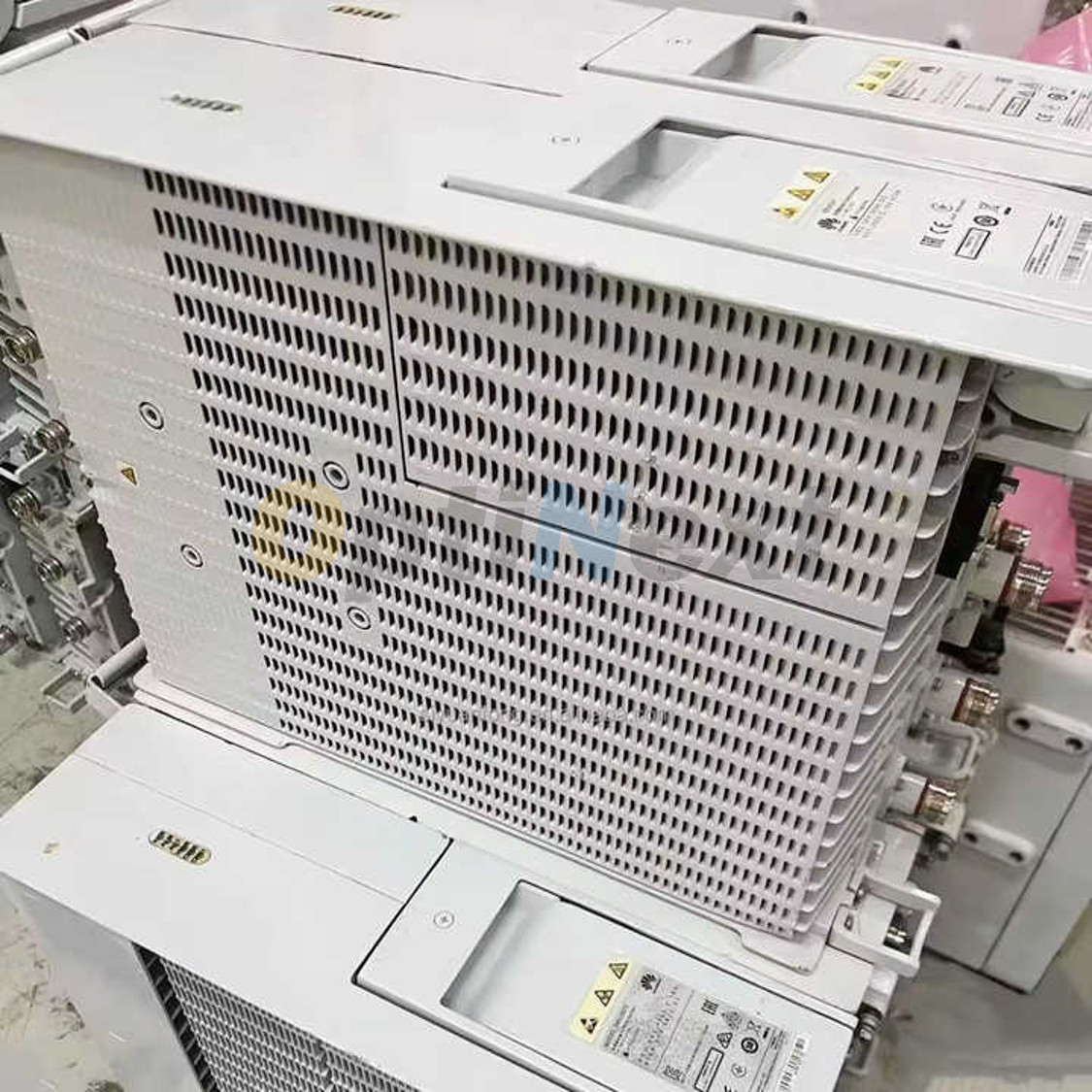

RRU5512t
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | RRU5512t |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3 RRU5512t (700 MHz+800 MHz+900 MHz) Technical Specifications
The technical specifications of an RRU5512t (700 MHz+800 MHz+900 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
3.1 RRU5512t (700 MHz+800 MHz+900 MHz) RF Specifications
The radio frequency (RF) specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
- In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
- In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.
Supported Frequency Bands
Table 3-1 Frequency bands supported by an RRU5512t
|
Frequency Band (MHz) |
Protocol-defined Band |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
IBW (MHz) |
|---|---|---|---|---|
| 700+800+900 | Band 28/n28+Band 20/n20+Band 8/n8 |
700: 703 to 733 800: 832 to 862 900: 880 to 915 |
700: 758 to 788 800: 791 to 821 900: 925 to 960 |
700: 30a 800: 30a 900: 35a |
| a: The IBW can be achieved when no third-order passive intermodulation (PIM3) products of TX signals fall in the RX frequency bands. | ||||
