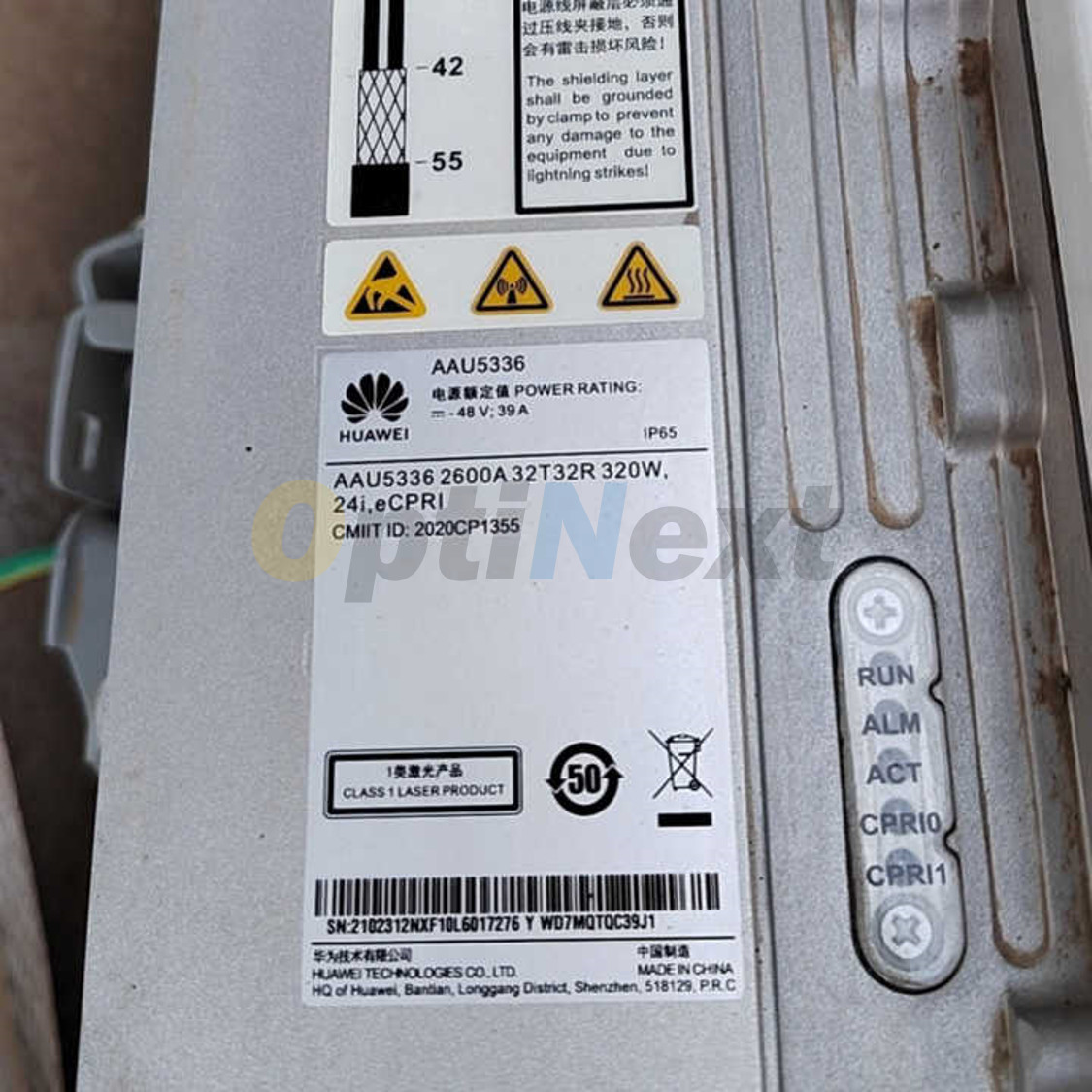

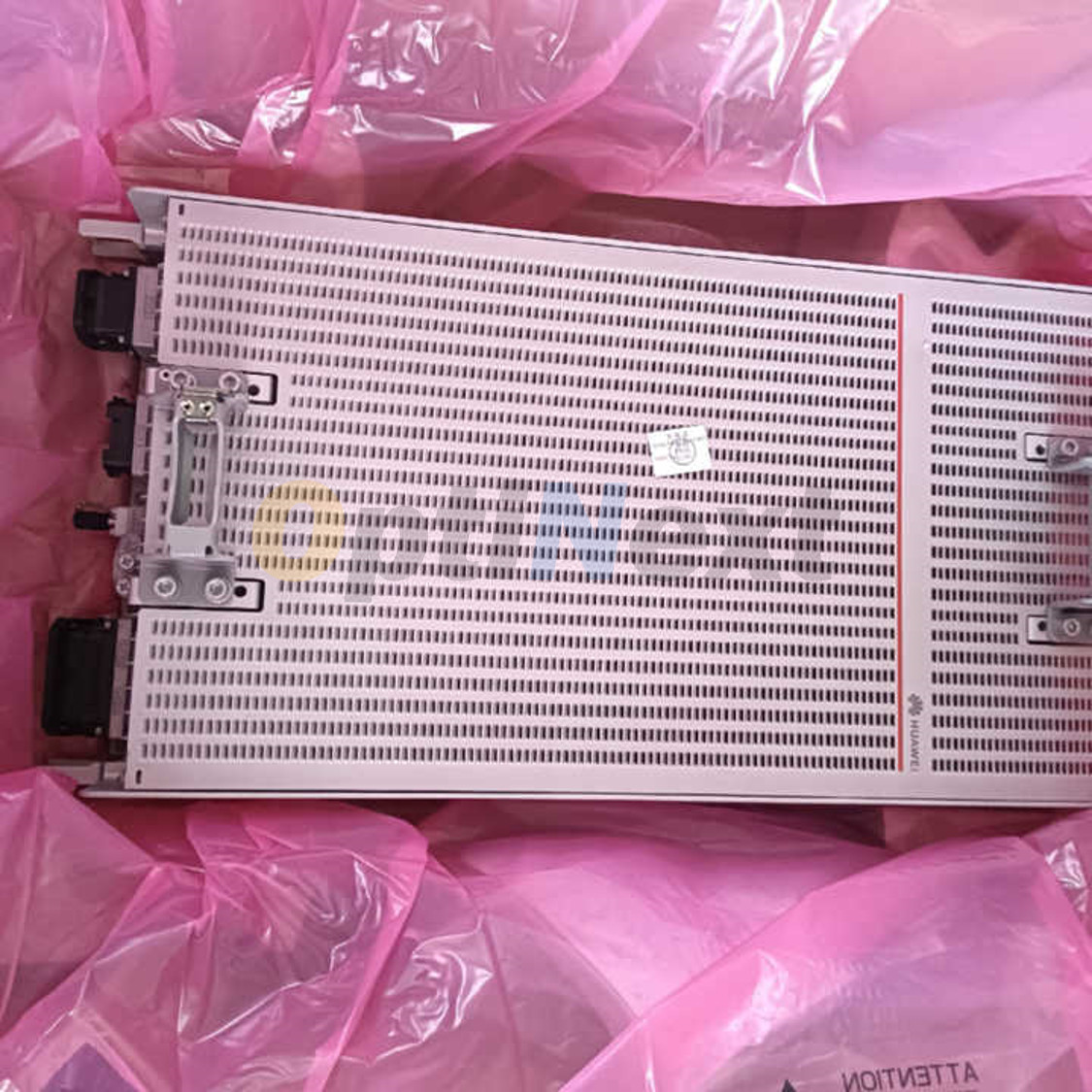

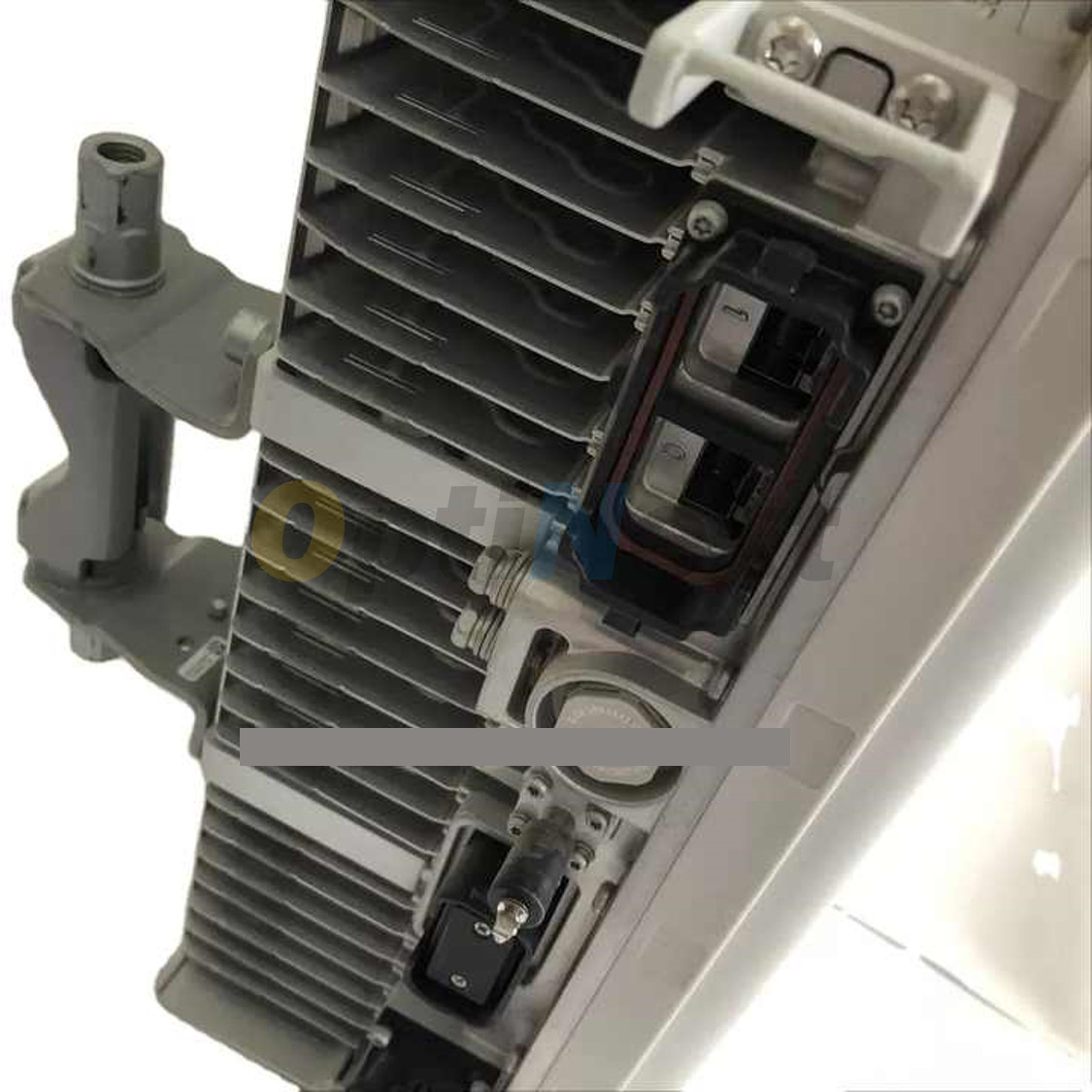

AAU5336w
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | AAU5336w |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
1 AAU5336w Technical Specifications
An AAU integrates the antenna and RF unit. This document provides a reference for planning and deploying an AAU5336w. It describes the radio frequency (RF) specifications, antenna specifications, receiver sensitivity, engineering specifications, and common public radio interface (CPRI) port specifications of the AAU5336w.
Product Versions
|
Product Name |
Solution Version |
Product Version |
|---|---|---|
| AAU5336w | SRAN20.1 |
V100R020C10 For details about the software versions of RF modules, see Software and Hardware Compatibility Description. |
3.1 AAU5336w (2600 MHz) RF Specifications
The RF specifications include radio access technologies (RATs), frequency bands, TX/RX modes, capacity, and output power.
- Unless otherwise specified, in the following, LTE and eNodeB always include LTE FDD, LTE TDD, and LTE NB-IoT. In scenarios where they need to be distinguished, LTE FDD, LTE TDD, and LTE NB-IoT are used. The same rules apply to eNodeB.
- Unless otherwise specified, in the following, NR and gNodeB always include FDD and TDD. In scenarios where they need to be distinguished, NR FDD and NR TDD are used. The same rules apply to gNodeB.
- In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, T is short for LTE TDD, M is short for LTE NB-IoT, N is short for NR, N (FDD) is short for NR FDD, and N (TDD) is short for NR TDD.
Supported Frequency Bands and RATs
Table 3-1 Frequency bands and RATs supported by an AAU5336w (2600 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 2600 | Band41/n41 | 2496 to 2690 | LTE TDD, NR TDD, TN (TDD) | 194 | 194 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
4.1 AAU5336w (3500 MHz) RF Specifications
The RF specifications include RATs, frequency bands, TX/RX modes, capacity, and output power.
- Unless otherwise specified, in the following, LTE and eNodeB always include LTE FDD, LTE TDD, and LTE NB-IoT. In scenarios where they need to be distinguished, LTE FDD, LTE TDD, and LTE NB-IoT are used. The same rules apply to eNodeB.
- Unless otherwise specified, in the following, NR and gNodeB always include FDD and TDD. In scenarios where they need to be distinguished, NR FDD and NR TDD are used. The same rules apply to gNodeB.
- In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, T is short for LTE TDD, M is short for LTE NB-IoT, N is short for NR, N (FDD) is short for NR FDD, and N (TDD) is short for NR TDD.
Supported Frequency Bands and RATs
Table 4-1 Frequency bands and RATs supported by an AAU5336w (3500 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 3500 | Band 42/n78, n77 | 3400 to 3600 | LTE TDD, NR TDD, TN (TDD) | 200 | 200 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
