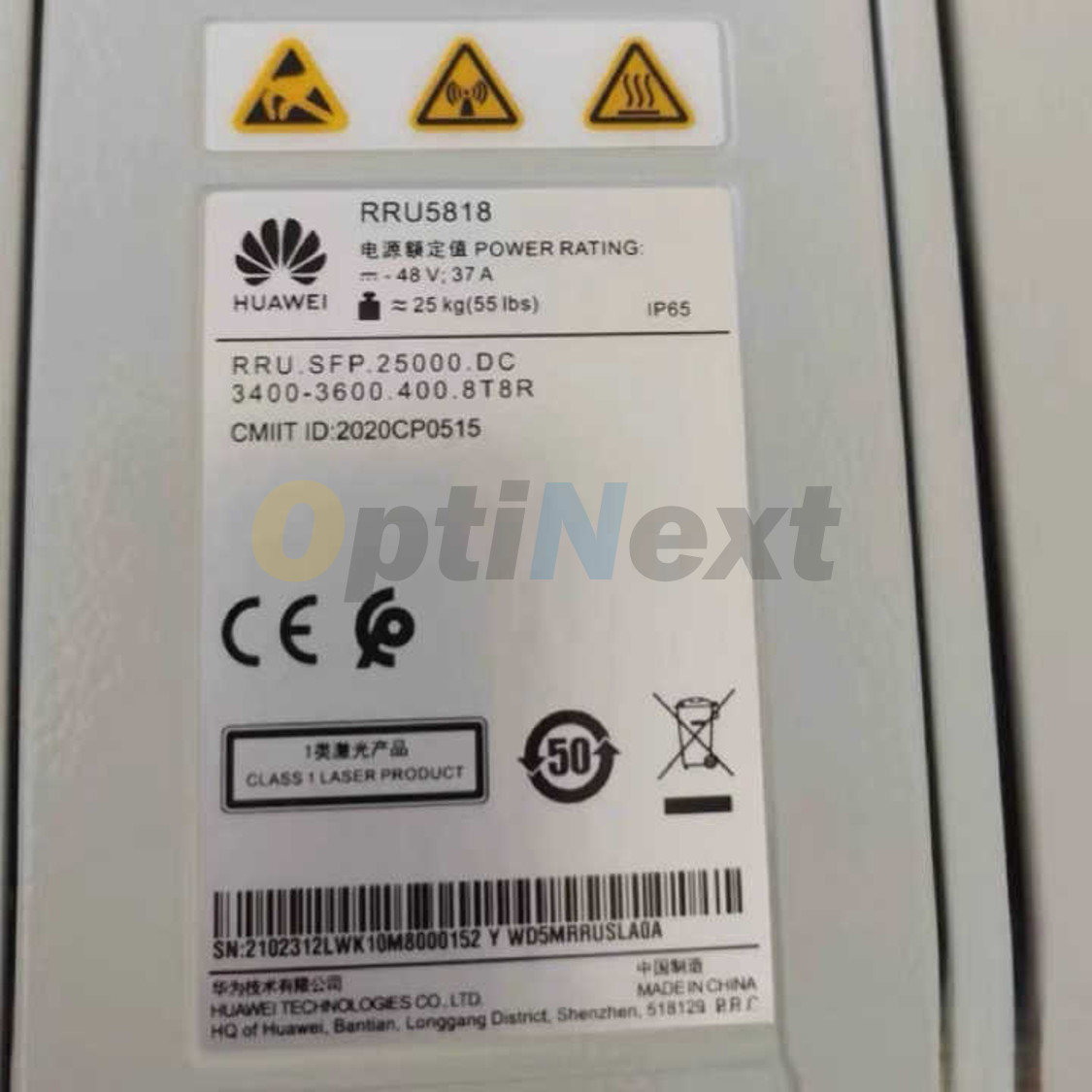

RRU5818
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | RRU5818 |
| Minimum Order Quantity | 5 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
| Supply Ability | 500pcs/Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3 RRU5818 (2300 MHz) Technical Specifications
The technical specifications of an RRU5818 (2300 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
3.1 RRU5818 (2300 MHz) RF Specifications
The radio frequency (RF) specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
In the following, T is short for LTE TDD, N is short for NR, and N (TDD) is short for NR TDD.
Supported Frequency Bands and RATs
Table 3-1 RATs and frequency bands supported by an RRU5818 (2300 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 2300 | Band 40/n40 | 2300 to 2400 | LTE TDD, NR TDD, TN (TDD) | 100 | 100 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
For details about the subframe configuration supported by RF modules in LTE TDD mode, see Subframe Configuration (TDD) in eRAN Feature Documentation. For details about the slot assignment supported by RF modules in NR TDD mode, see Standards Compliance in 5G RAN Feature Documentation.
TX/RX Modes and Capacity
Table 3-2 TX/RX modes and capacity of an RRU5818 (2300 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
TX/RX Modea |
Capacityb |
Supported Bandwidth (MHz) |
|---|---|---|---|---|
| 2300 | Band 40/n40 | 8T8R |
LTE TDD: 5 carriers NR TDD: 2 carriers TN (TDD): 1 NR TDD carrier and 3 LTE TDD carriers |
LTE TDD: 10/15/20 NR TDD: 20/30/40/50/60/70/80/90/100 |
4 RRU5818 (2600 MHz) Technical Specifications
The technical specifications of an RRU5818 (2600 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
4.1 RRU5818 (2600 MHz) RF Specifications
The radio frequency (RF) specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
In the following, T is short for LTE TDD, N is short for NR, and N (TDD) is short for NR TDD.
Supported Frequency Bands and RATs
Table 4-1 RATs and frequency bands supported by an RRU5818 (2600 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 2600 | Band 38/n38 | 2575 to 2615 | LTE TDD, NR TDD, TN (TDD) | 40 | 40 |
| 2600 | Band 41/n41 | 2496 to 2690 | LTE TDD, NR TDD, TN (TDD) | 194 |
LTE TDD: 120 NR TDD: 194 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
5 RRU5818 (3500 MHz) Technical Specifications
The technical specifications of an RRU5818 (3500 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
5.1 RRU5818 (3500 MHz) RF Specifications
The radio frequency (RF) specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
In the following, T is short for LTE TDD, N is short for NR, and N (TDD) is short for NR TDD.
Supported Frequency Bands and RATs
Table 5-1 RATs and frequency bands supported by an RRU5818 (3500 MHz)
|
Frequency Band (MHz) |
Protocol-defined Band |
Frequency Range (MHz)a |
RAT |
IBW (MHz) |
OBW (MHz) |
|---|---|---|---|---|---|
| 3500 | Band 42/n78 | 3400 to 3600 | LTE TDD, NR TDD, TN (TDD) | 200 | 200 |
| a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same. | |||||
