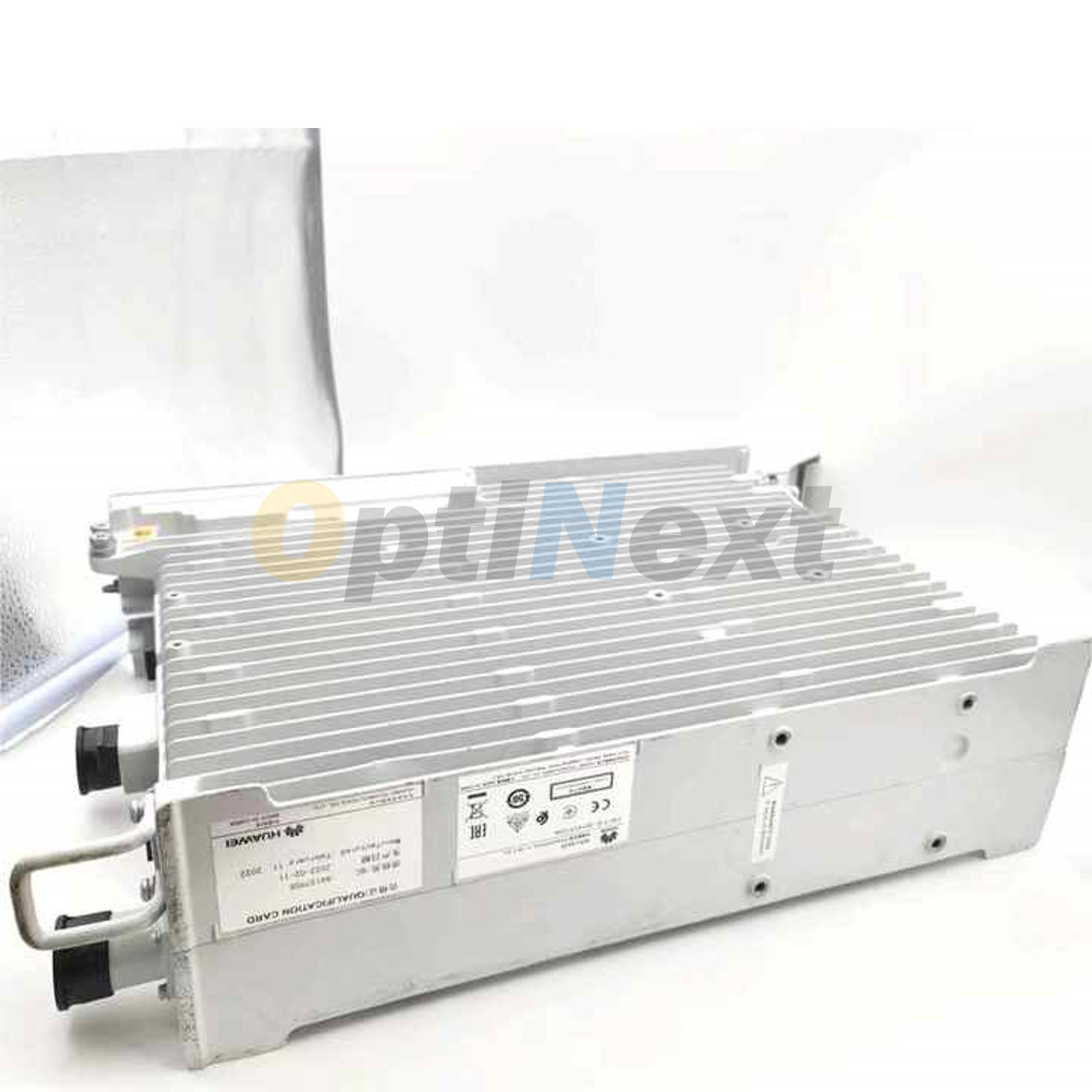

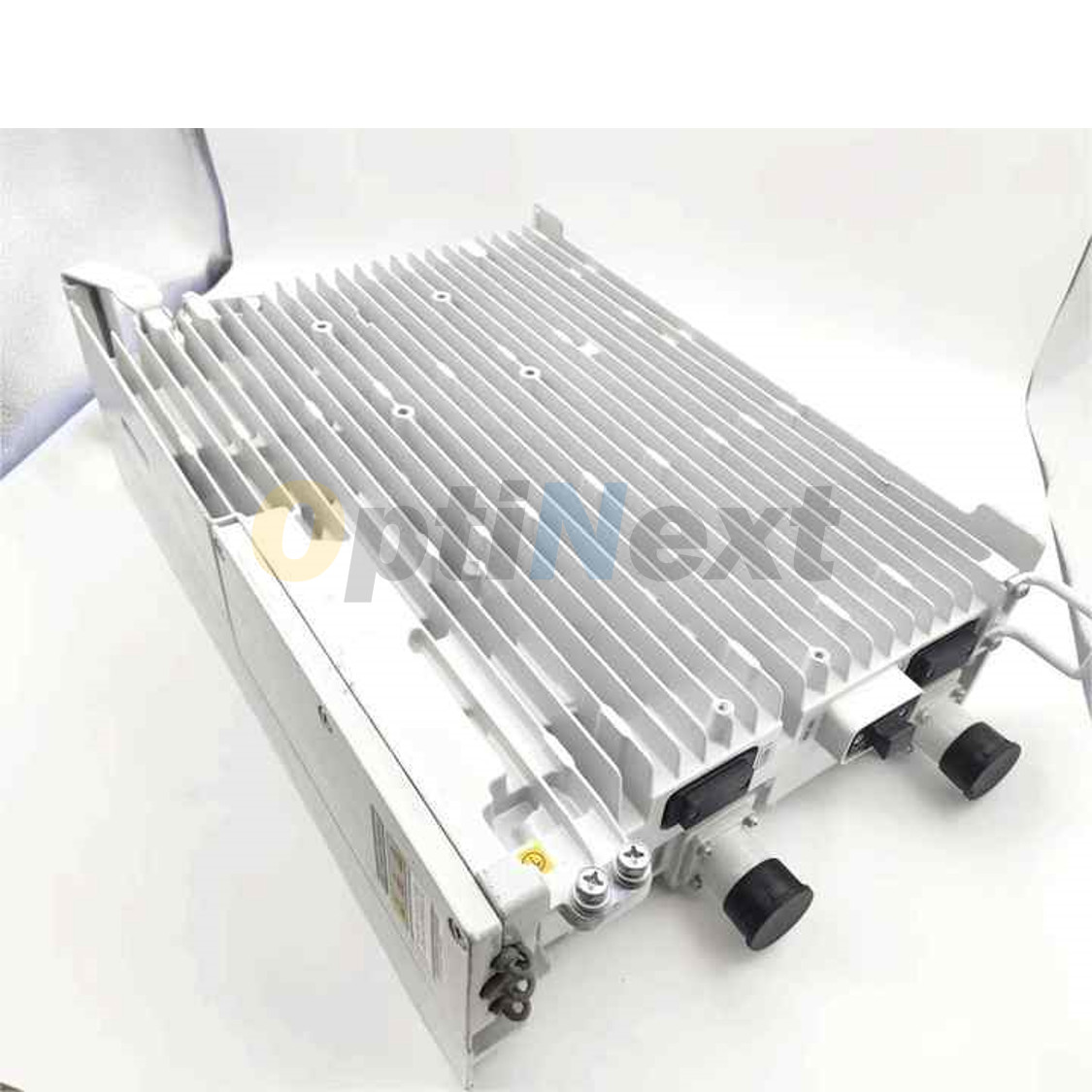

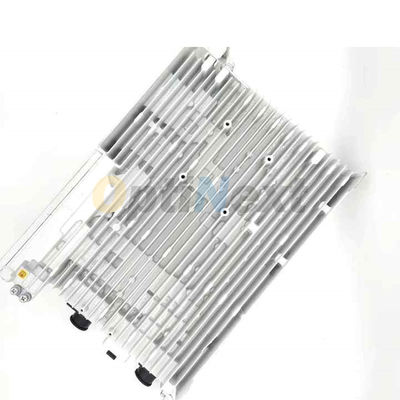

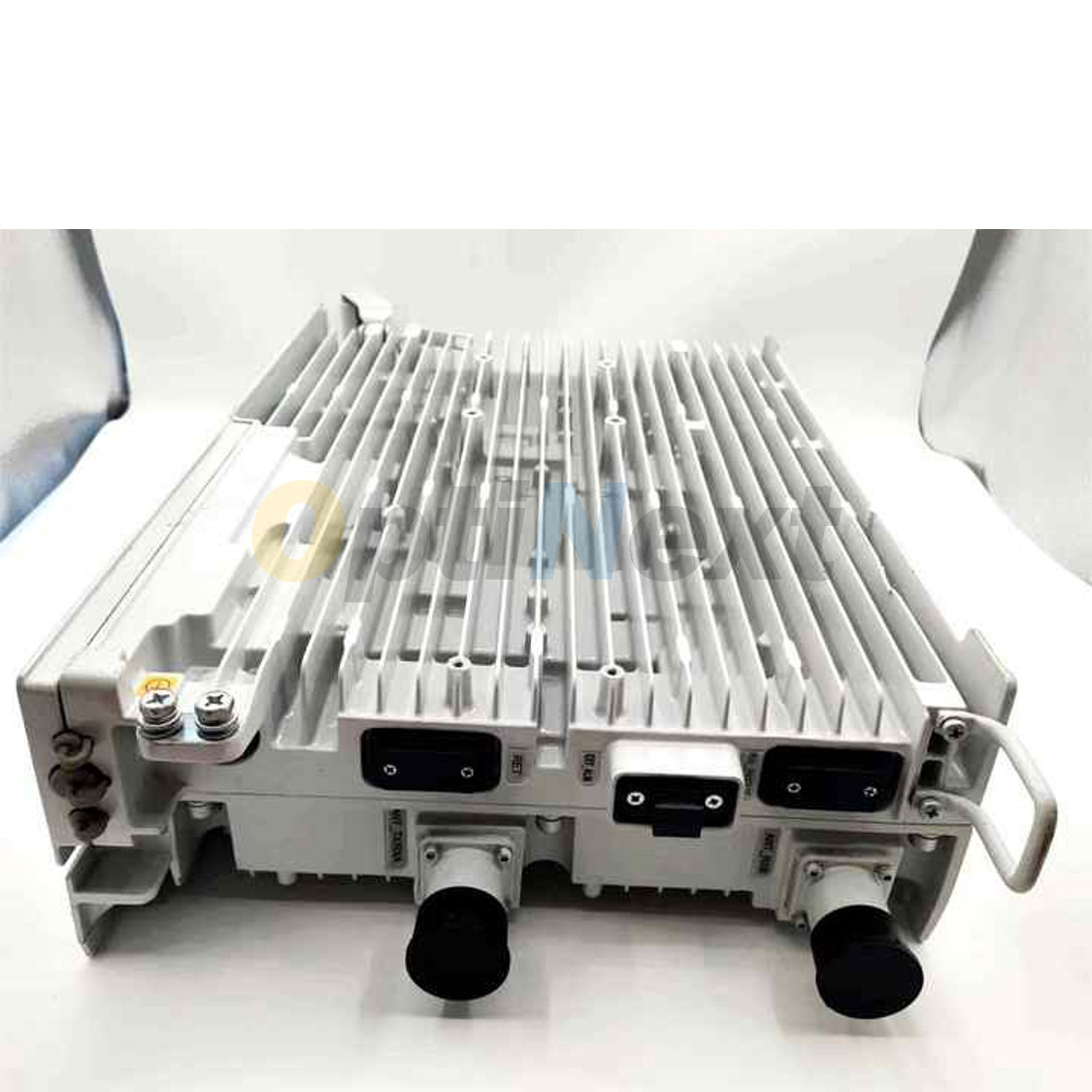

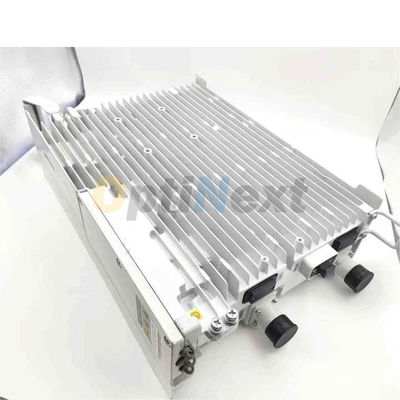

RRU3826
| Place of Origin | China |
|---|---|
| Brand Name | Huawei |
| Model Number | RRU3826 |
| Minimum Order Quantity | 5 |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
| Supply Ability | 500pcs/Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
3 RRU3826 (2100 MHz) Technical Specifications
The technical specifications of an RRU3826 (2100 MHz) include RF specifications, engineering specifications, and CPRI port specifications.
3.1 RRU3826 (2100 MHz) RF Specifications
The RF specifications include the supported RATs, frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.
Supported Frequency Bands and RATs
Table 3-1 Frequency bands and RATs supported by an RRU3826 (2100 MHz)
|
Frequency Band (MHz) |
RX Frequency Band (MHz) |
TX Frequency Band (MHz) |
RAT |
IBW (MHz) |
|---|---|---|---|---|
| 2100 | 1920 to 1980 | 2110 to 2170 | UMTS |
|
TX/RX Modes and Capacity
Table 3-2 TX/RX modes and capacity of an RRU3826 (2100 MHz)
|
Frequency Band (MHz) |
TX/RX Modea |
Capacityb |
Supported Bandwidth (MHz) |
|---|---|---|---|
| 2100 | 1T2R | 4 carriers | 5 |
|
a: mTnR in the TX/RX Mode column indicates that the RF module uses m transmit channels and n receive channels. b: The number of carriers in the Capacity column refers to the maximum number of carriers that can be configured for the module in single-mode scenarios, not the number of carriers that can be configured for a single channel. For details about the channel-level carrier configurations for the module working in a single mode, see Output Power Configuration in the following table. When the module is used with a feature, see the feature specifications in the corresponding feature parameter description to learn the module-level or channel-level carrier configurations that are supported after the feature is enabled. |
|||
Output Power and Carrier Configurations
Table 3-3 Output power and carrier configurations of an RRU3826 (2100 MHz)
|
Frequency Band (MHz) |
Maximum Output Powera |
Output Power Configuration |
|---|---|---|
| 2100 | 1 x 80 W | Typical Power Configurations for RRUs (Excluding NB-IoT) |
| a: mxP W in Maximum Output Power indicates that the number of TX channels of the RF module is m and the maximum output power of each channel is P W. The output power that can be configured for each carrier combination may be less than the maximum output power. For details about the power configuration for each carrier combination, see the related typical power configurations document. | ||
